SpectraAlyzer 2.0 Olive
The SpectraAlyzer 2.0 OLIVE and TW OLIVE “Top Window” are the most advanced analytical instrument solutions available for testing the most common (parameters) required within the olive oil extraction processes.

Download brochure(s):

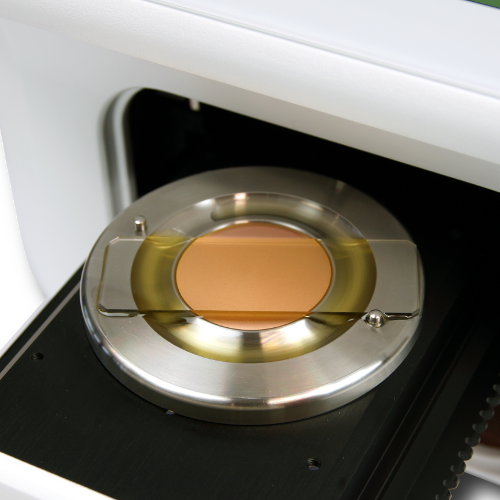

The new SpectraAlyzer 2.0 TW OLIVE has a different optical sample interface position than the traditional SpectraAlyzer system and allows for more comfortable and easier sample presentation. The samples are placed on the optical sample interface on top of the instrument using special spectroscopy petri dishes for all olive products: olives and olive pomace as well as soil samples and leaves. Several parameters in olive oil can be determined using the transflection stamp accessory. The NIR method of continuous reference/sample measurement developed by ZEUTEC ( double beam system) combining transflectance, transmittance and reflectance measurements is the reason for high sensitivity and long term drift stability of the instrument.

This method provides reliable multicomponent analysis results within seconds for the above mentioned olive and olive related products: olives, olive pomace, soil, leaves and OOEV (Olive Oil Extra Virgin).
There is no need to manually condition the sample or use extra reagents. With the SpectraAlyzer 2.0 OLIVE the olives do not have to be dried or weight prior to analysis which results in a significant increase of speed of the performed analysis.

SpectraAlyzer 2.0 Olive

Quantity
    • NIR Sample/Reference technology like all SpectraAlyzer instruments for high sensitive and long term stable measurements
    • User friendly sample presentation and easy to operate
    • Compact design optimized for bench top or at-line application
    • User interface with TFT and intrinsically mounted glass touch for straight forward hygenic instrument and autosampler operation
    • Ready made algorithms for olive paste and olive oil included for quick installation
  • Design
    For olive products and olive by-products
    Spectral range 1400 – 2400 nm
    Dual beam system, Sample / reference measurement
    High signal to noise ratio > 10000:1
    Large expandable internal memory for calibrations, methods and history results
    Auto-diagnostics
    Graphical user interface, projected capacitive glass touch panel
    Accessories
    Standard calibrations Included
    Keyboard As optional accessory
    Barcode reader As optional accessory
    Printer Thermal ticket or office type printer as optional accessory
    WiFi Wireless LAN as optional accessory
    AWX G2 software Application worx G2 software, optional accessory
    Transflection stamp Sampling cell for oil analysis, optional accessory
    Specifications
    Screen TFT 800 x 480 pixel
    Power requirements min. 90 V AC (50 – 60 Hz), max. 260 V AC (50 – 60 Hz), 220 VA
    Operating temperature 5 °C – 40 °C non-condensing
    Interfaces 1 x front USB 2.0, 3 x USB 2.0, 2 x RS232, Ethernet, Audio out
    Measurements Height: 310 mm / Width: 300 mm / Depth: 480 mm
    Weight 17 kg
